Startseite /Produkte/Verdrängungs-Blasformen-Maschine/Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine

Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine

$49,800/sets 1-1 sets
Preis
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Video-Ausgangskontrolle: Bereitgestellt
Maschinenprüfbericht: Bereitgestellt
Kernkomponenten: SPS, Motor, Lager, Getriebe, Motor, Getriebe
Kunststoff verarbeitet: PP, HDPE, PVC, PE/PP
Herkunftsort: Jiangsu, China
brand name: DAWSON
Stromspannung: 220 V, 380 V, 415 V, 440 V usw.
Abmessung (L*B*H): 3,8 * 2,2 * 2,4
Klemmkraft (KN): 110
Schrauben-L/D-Verhältnis: 24
Schraubdurchmesser (mm): 70
Leistung (Kg/h): 60
Automatisierung: automatisch
Nr. der Schneckenheizzone: 3
Schneckenheizleistung (kW): 13.8
Extrudermotorleistung (kW): 22
Schimmelplattengröße (Breite) (mm): 350
Schimmelplattengröße (Höhe) (mm): 490
Luftdruck (MPA): 0,6
Luftverbrauch (m³/min): 1.4
Düsenkopf-Heizleistung (kW): 3
Leistung (kw): 49.4
Gewicht (t): 6
Wichtige Verkaufsargumente: Einfach zu bedienen
Garantie: 1 Jahr
Station: Einzelstation
Zahl des Stäubchens: 1/2/3/4
Max. Produktvolumen: 30l
Spannsystem: Schaltart Klemmsystem
Geeignetes Material: HDPE, PP.
Hydrauliksystem: Elektrische Antriebe
Motorleistung der Ölpumpe: 11 kW
Spannkraft: 110 kW
Formöffnungshub: 250-600mm
Bewegungsstrich der Form: 460 mm
Hervorheben:

11kw Extrusion Blow Molding Machine

,

HDPE Jerry Can Bottle Blow Machine

,

10l Extrusion Blow Molding Machine
Grundinformation
Zahlung und Versand AGB
Produkt-Beschreibung
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 0
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 1
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 2
Basic parameters
Model
DSB80-30L
DSB100II-30L
Suitable material
PE.PP,PVC,PS,PETG,etc.
Max volume
30L
Output capacity
Around 50 PCS/H
80-100PCS/H
Size
3.6×2.8×2.8(M)
4.8×4×2.8(M)
Weight
10T
16T
Plasticizion system
Summarize
High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer
Hard finishing、High intension、Low noise reducer
Screw
∮80mm,
L/D ratio 28,
120kg/h (HDPE)
37kw
∮100mm,
L/D ratio 28,
200kg/h (HDPE)
55kw
38CrMoALA
Cooling system available
Heating Zone
4
5
Aluminum Heater, Automatic heating
Heating power
21KW/H
25KW/H
Cooling Fan
Separate cooling system for heaters
Automatic cooling
Extrusion system
Summarize
High-grade alloy steel, center feeding
Die head number
1
1
Max die mouth
250mm
250mm
Extruder Motor
37kw MOTOR
55kw MOTOR


Click here to send us messages >>Send Inquiry...

Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 3
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 4
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 5
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 6
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 7
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 8
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 9
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 10

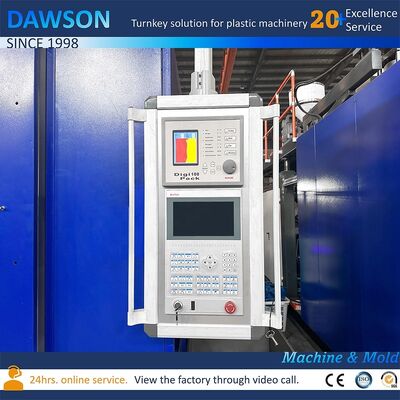

· Extrusion system: Adopt world-famous brand automatic temperature · controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating. · Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well · Blowing device: with upper blowing type · Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. · Electric controlling system: Adopt programmable controller made in B&R Austria. Every electric component is of world-famous brand
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 11
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 12

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 13
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 14
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 15
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 16
Screw LD Ratio 24 11kw Oil Pump Motor Power HDPE Jerry Can Bottle Blowing Machine 10 15 20 25 30L Extrusion Blow Molding Machine 17
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
